Feature
- 20 years production experience guarantee the most economic and durable crimping applicator.
- The C.H./I.h. Is 0.05mm, the adjustable range is 0.1mm.
- Can be used on both semi-automatic crimping machine and fully automatic crimping machine.

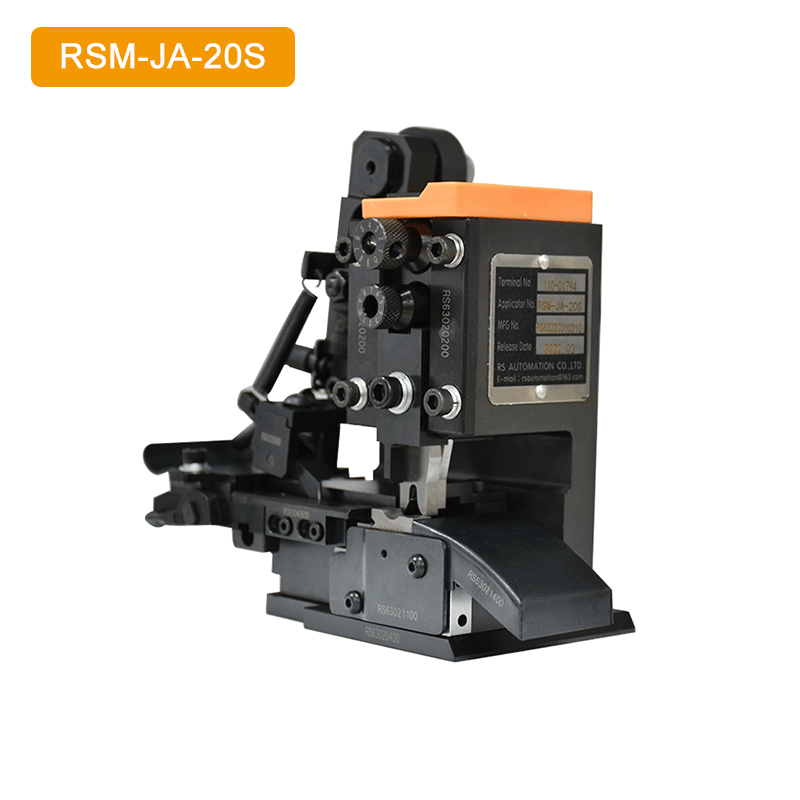

30mm Stroke Crimping Applicator RSM-JA-20S
- Wire Size:0.08mm²-6mm²
- Stroke:30mm
Specification
| Model | RSA-JA-20S |
| Stroke | 30mm |
| Feeding Type | Side feed (Mechanical) |
| Accuracy of adjustment | C.H. 0.05mm , I.H.0.05mm |
| Adjustable Range | C.H. 0.1mm , I.H.0.1mm |
| Sliding Block Gap | 0.01-0.02mm |
| Shutting Height | 119.7mm |
| Wire Size | 0.08mm²-6mm² |
| Terminal Thickness | 1.2mm(Max） |
| Feeding Pitch | 140*112*158mm |
| Weight | 4KG |
| Dimension | 180*92*167mm |
