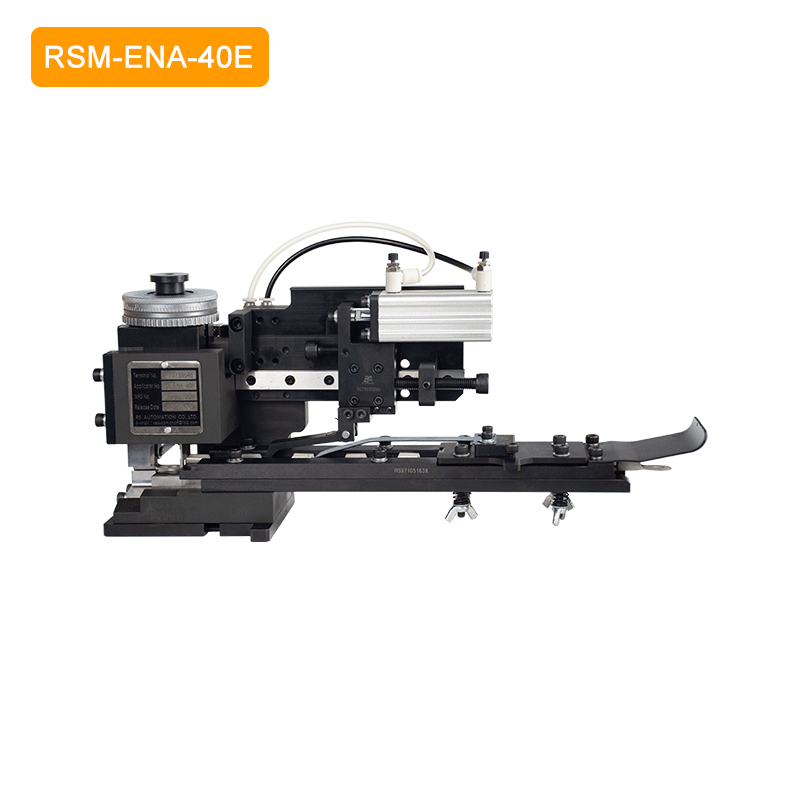

40mm Stroke Pneumatic Crimping Applicator RSM-ENA-40E
- Wire Size:3mm²～15mm²
- Feed Type:40mm
Feature
- With PLC automation software technology to ensure the movement accuracy, high efficiency, waterproof bolt accurate positioning
- Threading with a high-speed, threading rate increased substantially in water-proof bolt, improve production efficiency
- Error automatically detected and digital display prompted
Specification
| |
|---|
| Model | RSM-ENA-40E |
| Feed Type | 40mm |
| Stroke | End Feed |
| Shut Height | 135.8mm |
| Wire Size | 3mm²～15mm² |
| Terminal Thickness | 1.2mm（max） |
| Feeding System | Pneumatic |
| Terminal Pitch | 45mm（max） |
| Weight | 6.5kg |
| Dimension | L291mm×W101mm×H174mm |
