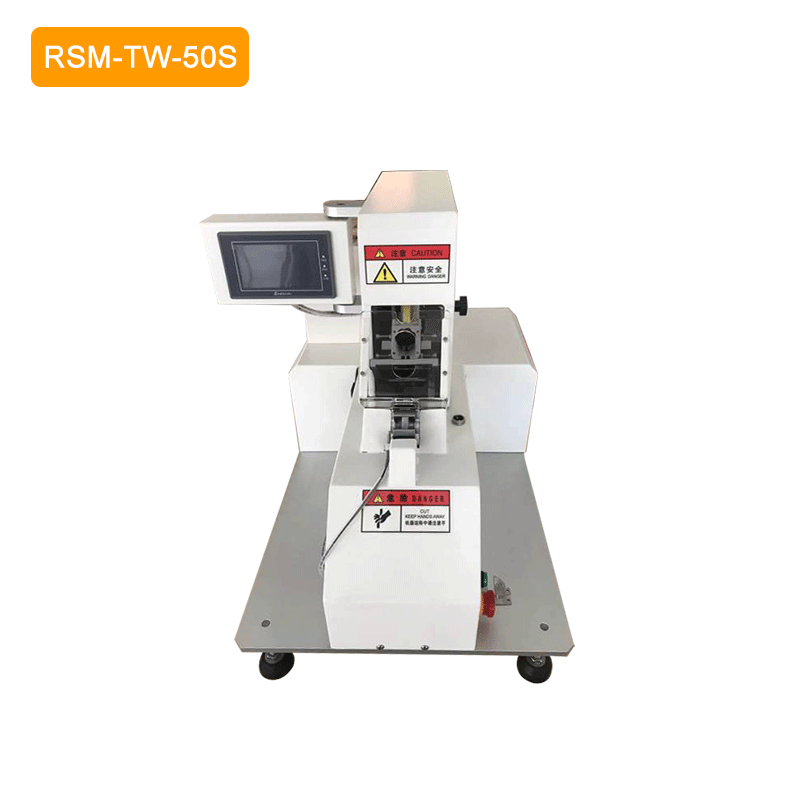

Automatic Spot Taping Machine RSM-TW-50S
- Tape Width:
20~50mm (Or Customized)
- Cutting Length:
40~90mm (Or Customized)
- Strapping Bundle OD:
Max 15mm or customized
Feature
- Special machine controlled by PLC,designed for spot taping
- Applicable to masking tape,PVC tape, cloth tape and Flannel tape
- 1.5s cycle time, the tape strapping number and length is settable
- Intergrated with taping missing sensor, has indication funtion when the tape used out
Specification
| |
|---|
| Model | RSM-TW-50S |
| Cycle Time | 1.5s |
| Tape Width | 20~50mm (Or Customized) |
| Cutting Length | 40-90mm (Or customized) |
| Tape I.D. | Max 76mm |
| Tape O.D. | Max 120mm |
| Strapping Bundle O.D. | Max 15mm or customized |
| Voltage | 220V/50Hz |
| Power | 550W |
| Air pressure | 0.5-0.7MPa |
| Weight | 30Kg |
| Dimension | L670mm*W390mm*H480mm |
