Specification


Model	RSM-WF-810
Drive Mode	Three Phase Motor + Reduction GearRPM
Max. Speed	1450
O.D.Of Cable Spool	2200
I.D.Of Cable Spool	500-1000mm
Height of Cable Spool	53-85mm
Installation	320-800mm
Cutting Tolerance	Both Side Clamping And Prop Up
Speed Mode	Woden Or Plastic Spool
Driven Model	Feeding Speed Self-Adjustment With Stepless
Max. Loading Weight	700KG
Motor Power	3KW
Voltage	380V, 3 Phase
Weight	470KG
Security Way	600-1000pcs/h (Depending on the wire)
Dimension	L1650W1800H1600
Packing Dimension	L1750W1900H1700

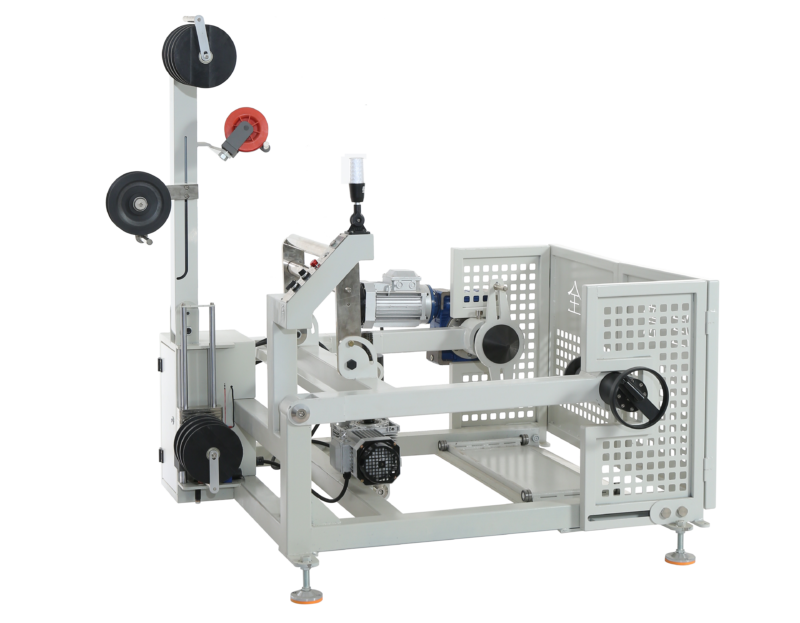

Cable Feeding Machine RSM-WF-810
