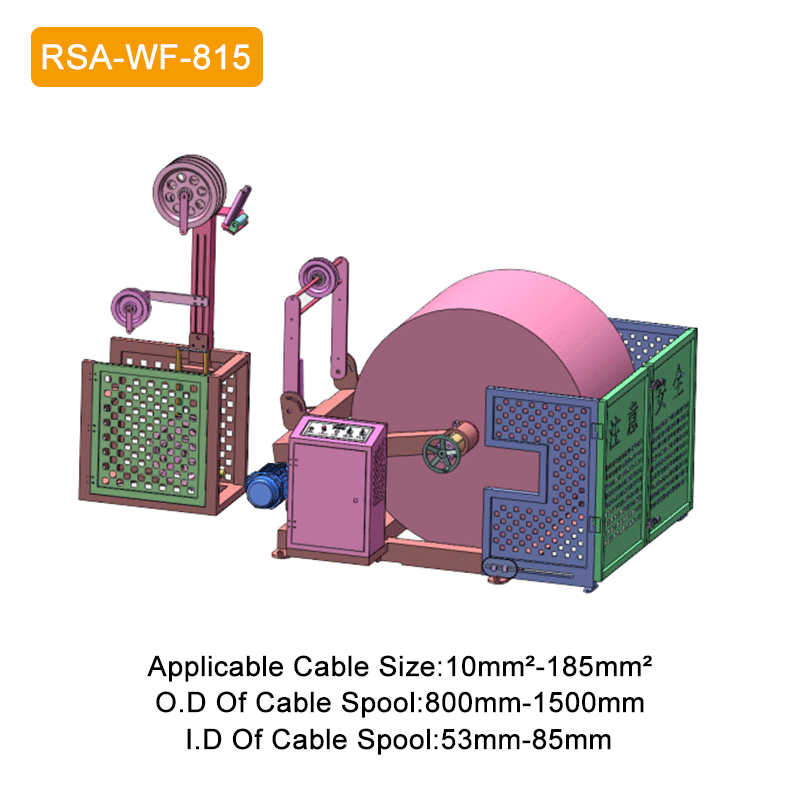

| Model | RSM-WF-815 |
| Drive Mode | Three Phase Motor + Reduction Gear |
| Applicable Cable Size | 10mm²-185mm² |
| Loading Weight | Max. 1500kg |
| O.D.Of Cable Spool | 800-1500mm |
| I.D.Of Cable Spool | 53-85mm |
| Cable Spool width | 450-900mm |
| Installation | Both Side Clamping And Prop Up |
| Cable Spool Type | Woden Or Plastic Spool |
| Speed Mode | Feeding Speed Self-Adjustment With Stepless |
| Motor Power | 3KW |
| Lift Motor Power | 2.2KW |
| Voltage | 380V, 3 Phase |
| Security Way | Over All Protection |
| Weight | 1100KG |
| Cable Feeder 's Dimension | L2100mm*W1900mm*H1500mm |
| Pre Feeder' s Dimension | L750mm*W500mm*H1800mm |
