Feature
- Compact design, which can save space and be integrated into production line.
- Bench top, more suitable for bigger bundle size.
- User-friendly, easy operation and easily adjustable taping speed and taping turns.

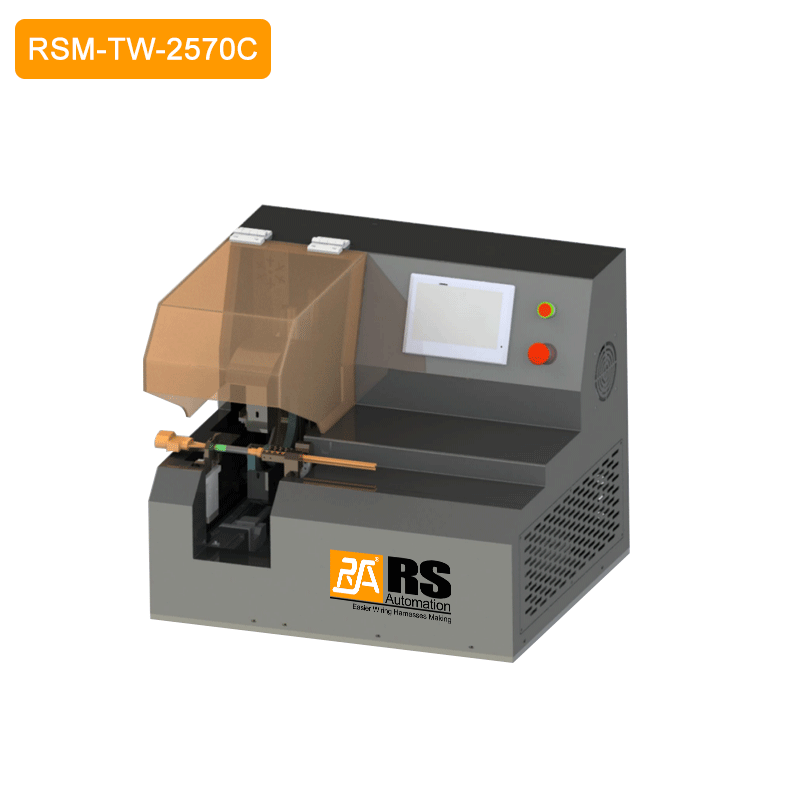

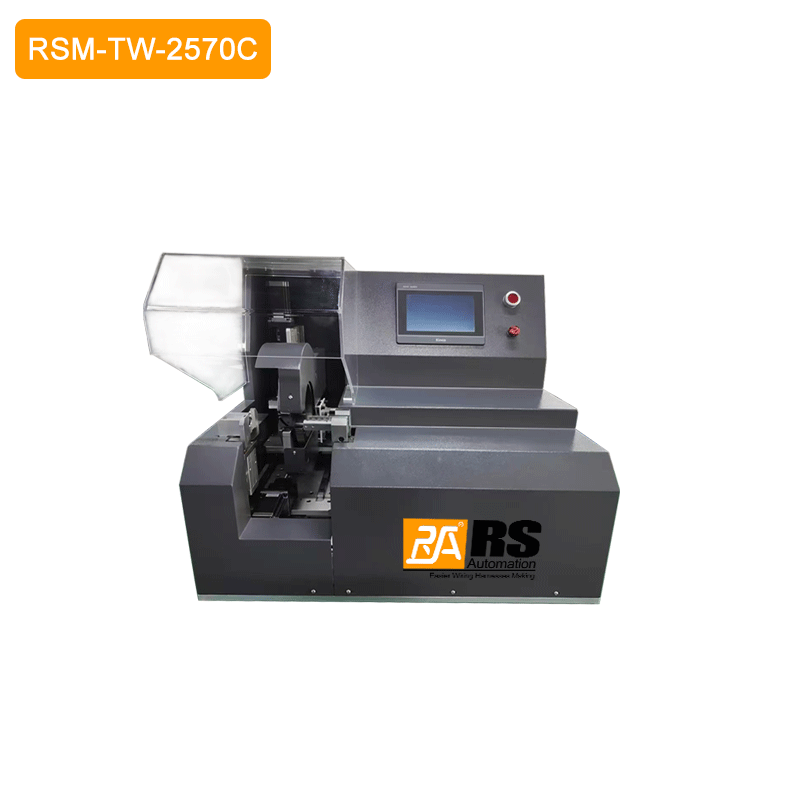

Continuous Taping Machine RSM-TW-2570C
- Taping Accuracy: ±0.5mm
- Taping Width: 10-19mm
Specification
| Model | RSM-TW-2570C |
| Application | Fixed-point or short-distance continuous taping for a single hard pipe or hard wire. (No branches in taping area) |
| Tape Material | PVC, masking tape, cloth tape |
| Tape Width | ≤25mm (Customizable) |
| Tape Roll O.D. | ≤100mm |
| Harness Length | ≥200mm |
| Harness O.D. | 8-28mm |
| Continuous Taping Length | ≤70mm |
| Length From Wire End | Min.30mm (gap between wire end and tape edge) |
| Control Way | MCU |
| Taping Position Accuracy | ±2 |
| Overlapping Accuracy | ±1.5 |
| Cycle Time | 5sec per taping spot (depends on taping method) |
| Air Source | 0.4-0.6Mpa |
| Power | 400W |
| Voltage | AC220V 50HZ (single phase) |
| Ambient Temperature | 0-40℃ |
| Weight | 90KG |
| Dimension | L600mm×W700mm×H620mm |
