Feature
- Special design for the round shape and corrugated tube cutting. Splitting function is applicable
- Controlled by PLC, integrated by Chinese and English operation interface
- Adopt NT cutter ,much more cost-effective.

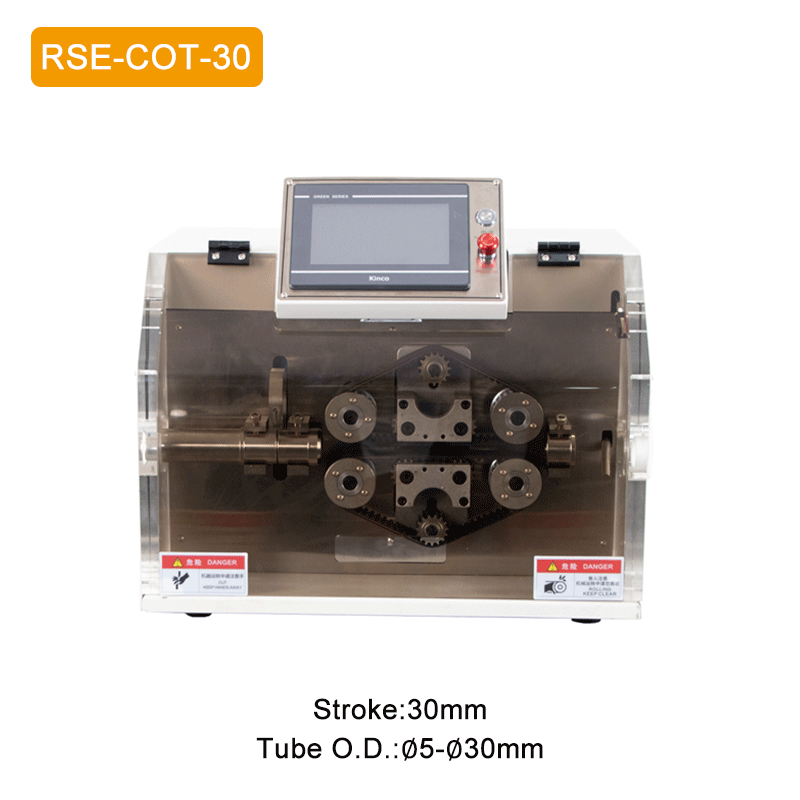

Corrugated Tube Cutting Machine RSE-COT-30
- Voltage:220V 50-60Hz
- Tube O.D.:Φ5-Φ30mm
Specification
| Model | RSE-COT-30 |
| Control system | PLC + HMI |
| Cut Off Way | Driven by motor |
| Stroke | 30mm |
| Voltage | 220V 50-60Hz |
| Power | 300W |
| Tube O.D. | Φ5-Φ30mm |
| Cutting Tolerance | L±1%(L= Cutting Length) |
| Cutting Speed | 10-60 pcs/min (Depends on the cutting length） |
| Dimension | L580mm×W470mm×H500mm |
| Weight | 70Kg |
