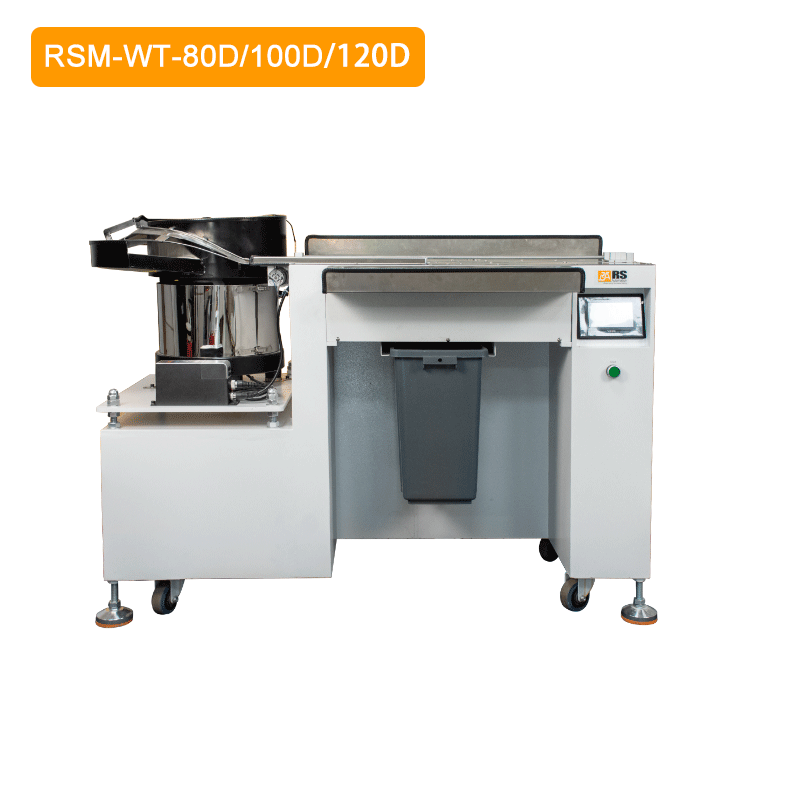

Desktop Cable Tie Strapping Machine RSM-WT-80D/100D/120D
- Application Range:80mm/100mm/120mm
- Strapping Force:>20N
Feature
- Loaded loosen cable tie to vibrant disc,automatically feeding material,without manual operation
- Machine can automatically loaded and cutting off the cable tie,save time and labor,improve working efficiency to 3 times than operation by manual
- PLC man machine control,high precision,ribbon tightness can be adjusted
- The machine is upgraded to use pure electric,without additional air source,more space saving and more convenient operation
Standard Parts
- Power Cord, Foot Switch, Open-end Wrench, Cross Screwdriver, Hex Key, Spare Screws, Swing Arm for Tie Cutter, Tri-Wing Key
Specification
| |
|---|
| Model | RSM-WT-80D/100D/120D |
| Application Range | 80mm/100mm/120mm |
| Tolerance | <0.01mm |
| Voltage | AC220/50HZ |
| Power | 100W |
| Cycle Time | 1.3s |
| Residue Length | 1-3mm |
| Strapping Force | >20N |
| Bunding Size | 1-30mm |
| Productivity | 1500-1800PCS/h |
| Weight | 150KG |
| Dimension | L1230×W550×H800mm |
