Feature
- Adopt high precise Mitsubishi servo motor
- Using the high exactitude THK linear guide
- With the SMC pneumatic parts
- The terminal crimping unit was controlled by high precision transducer

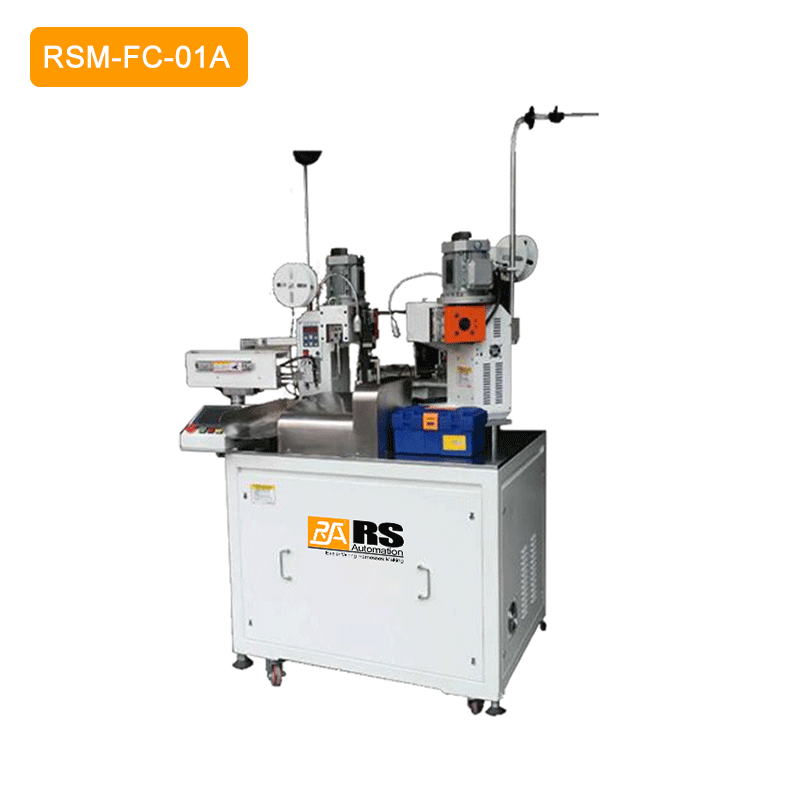

Fully Automatic Terminal Crimping Machine RSM-FC-01A
- Capability :AWG14- AWG30
- Cutting Length:40mm-99999.9mm
Specification
| Model | RSM-FC-01A |
| Fuction | Computer controlled terminal crimping system,stripping system,half-stripping system,detecting system |
| Capability | AWG14- AWG30 (40mm cutting length the time of crimping both ends terminal is 0.7s/pcs) |
| Speed | 4500pcs/h (40mm) |
| Cutting Length | 40mm-99999.9 mm |
| Tolerance | ±0.5mm ( Cutting length＜100mm) |
| ±1.0mm ( Cutting length＞100mm) | |
| Stripping Length | Front End 0.1mm-10mm（Half-stripping 3mm-10mm） |
| Rear End 1mm-17mm（Half-stripping 3mm-17mm） | |
| Mould Of Crimping | NO.1 OTP; NO.2 Horizontal &perpendicular |
| Crimping Machine | 2T crimping machine with low noise control professional central process unit |
| Test Ability | No wire ;tie a knot ;crimp with fault way;low pressure |
| Voltage | AC220V-50/60Hz, single phase |
| Air Pressure | 5-7kgf |
| Tool Material | Tungsten steel / high-speed steel |
| Voltage | AC 220V, 50/60Hz |
| Air pressure | 0.5MPa (140NL/min) |
| Measurement | 1060*800*1330mm |
| Weight | 400 Kg |
