Feature

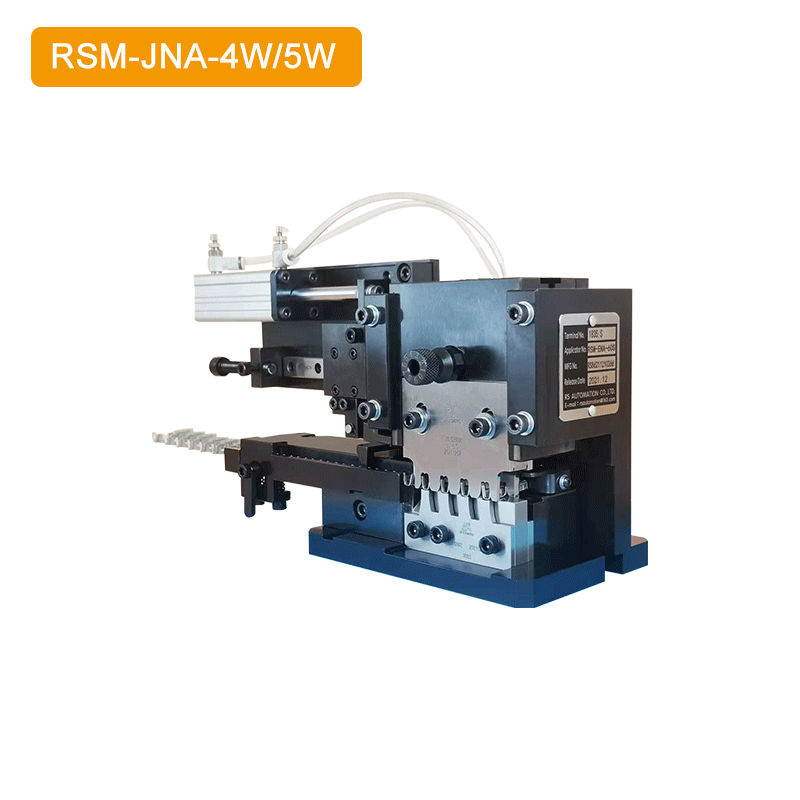

Fuse Box Terminal Applicator RSM-JNA-4W/5W
- Wire Size:0.08～6mm² (9~28AWG)
Specification
| Model | RSM-JNA-4W/5W |
| Stroke | 30mm |
| Feeding type | Side Feed |
| Shut Height | 119.7mm(4.713in) |
| Wire Size | 0.08～6mm² (9~28AWG) |
| Terminal Thickness | 1.2mm（max） |
| Feeding System | Pneumatic |
| Terminal Pitch | 40mm（Customizable） |
| weight | 10KG |
| Dimension | L263.1mm×W98.6mmXH150.5mm |
