Feature

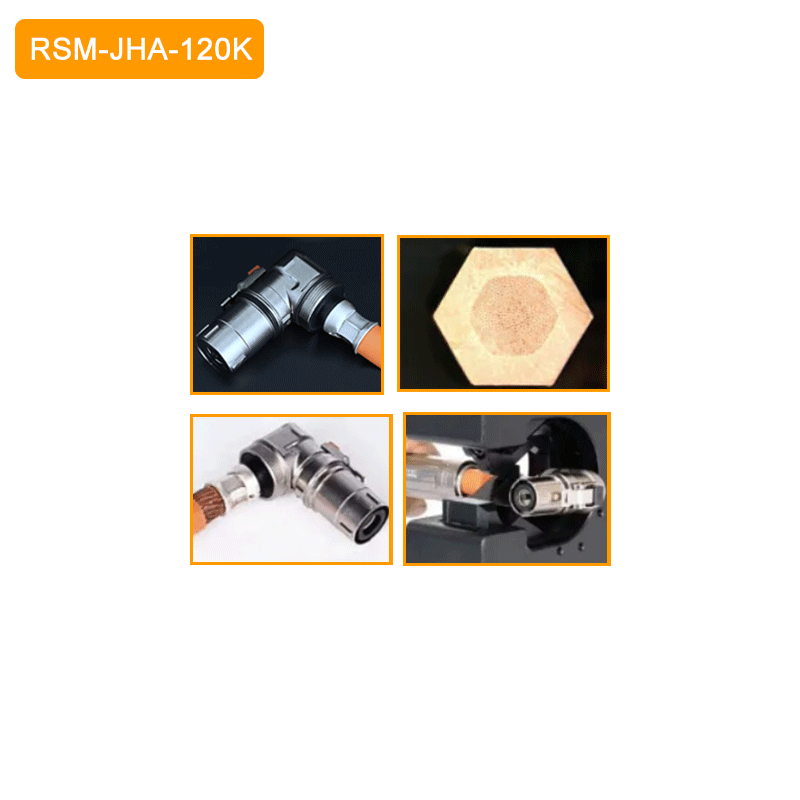

- Especially suitable for crimping right angle terminals or terminals with large-sized head.
- No need to change crimp tool when change different terminal sizes.
- Hexagon crimping shape, versatile for various terminal types.

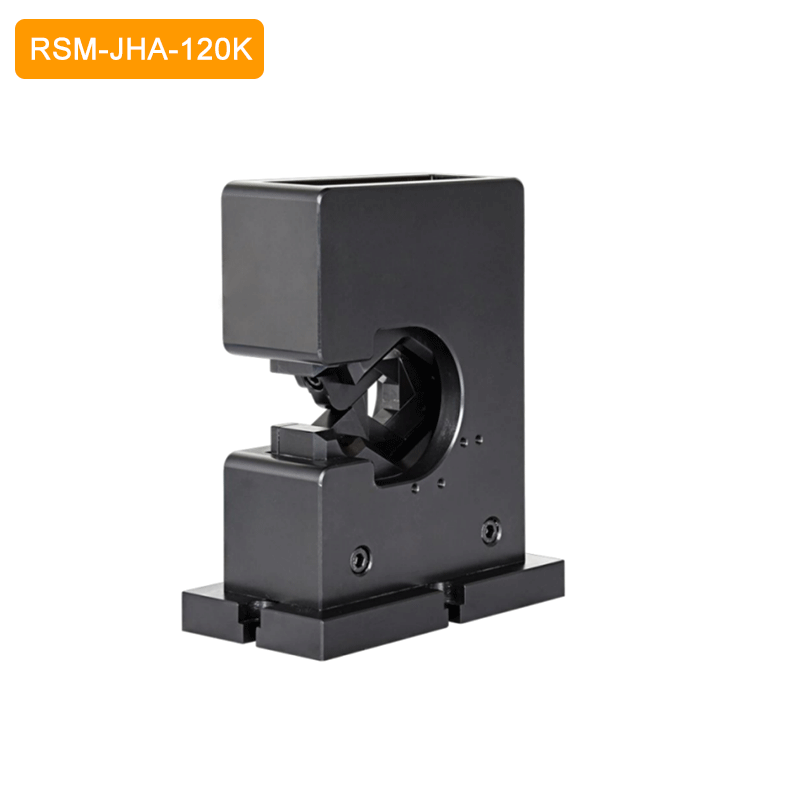

Hexagon Crimping Applicator (Open End) RSM-JHA-120K
- Wire Size:0.08mm²-6mm²
- Stroke:30mm
Specification
| Model | RSM-JHA-120K |
| Applicable Crimping Press | 20T/40T servo terminal crimping press, pneumo-hydraulic crimping press, silent crimping press above 8T, electric punch press |
| Crimping Shape | Hexagon Crimping |
| Stroke | 0-60mm (adjustable) |
| Wire Size | 10-120mm² |
| Crimping Accuracy | ±0.03mm |
| Crimp Tool Thickness | 5-15mm (depends on terminal length) |
| Crimp Tool Service Life | About 100,000 cycles or more |
| weight | 16.5KG |
| Dimension | L188mm×W100mm×H250mm |
