Function

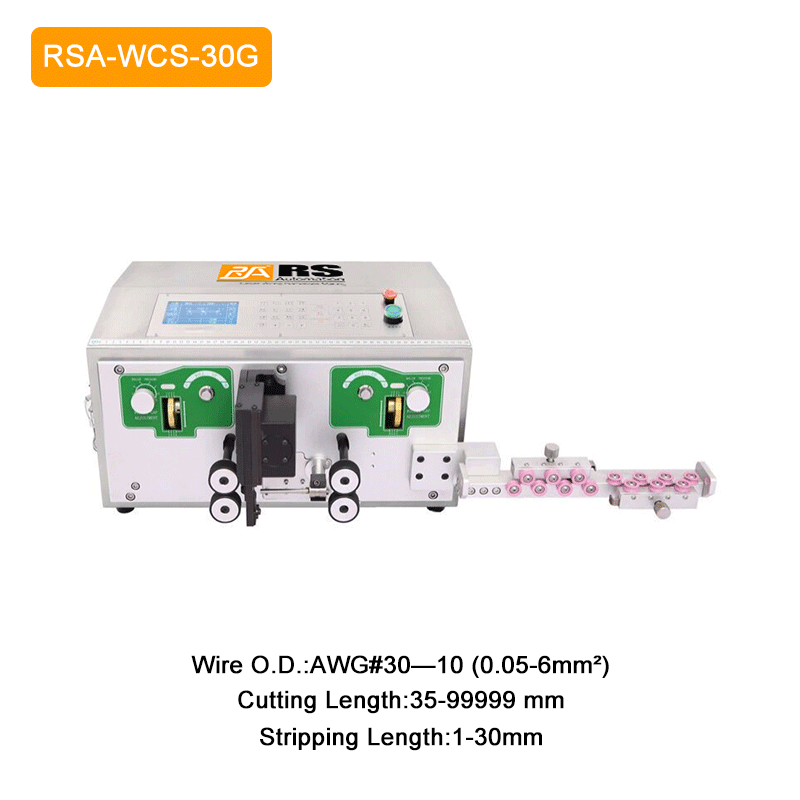

- Widely applicable. Suitable for processing of wires of AWG 30-10 (customizable for short and thin wire) .
- Highly flexible. It can be applied to different wires only by changing the guiding tube.
- Great precision. All the mechanisms are equipped with self-compensation function, which greatly reduces the error.
- User-friendly. All parameters can be set on HMI, and Chinese/English interface, to ensure easy setup for each function.
- Up to 99 groups of processing parameters can be stored, which greatly saves the adjustment time and materials waste.
- Window stripping mechanism is optional, which is capable of up to 32 window stripping on one wire.
Optional
Wire Feeder
| For cable coil I.D. | 185 mm |
| For cable coil Height | 110mm |
| For cable coil O.D. | 380mm |
| For spool cable I.D. | 24mm |
| For spool cable Height | 180mm |
| For spool cable O.D. | 400mm |
Wire Collector
Length 2m/4m/6m/8m/10m/12m (optional)
