Feature
- Driven by a servo motor,with high accuracy and stable operation
- Quantitative setting,production capacity display
- Full digital adjustment,simple operation
- Classified authority management

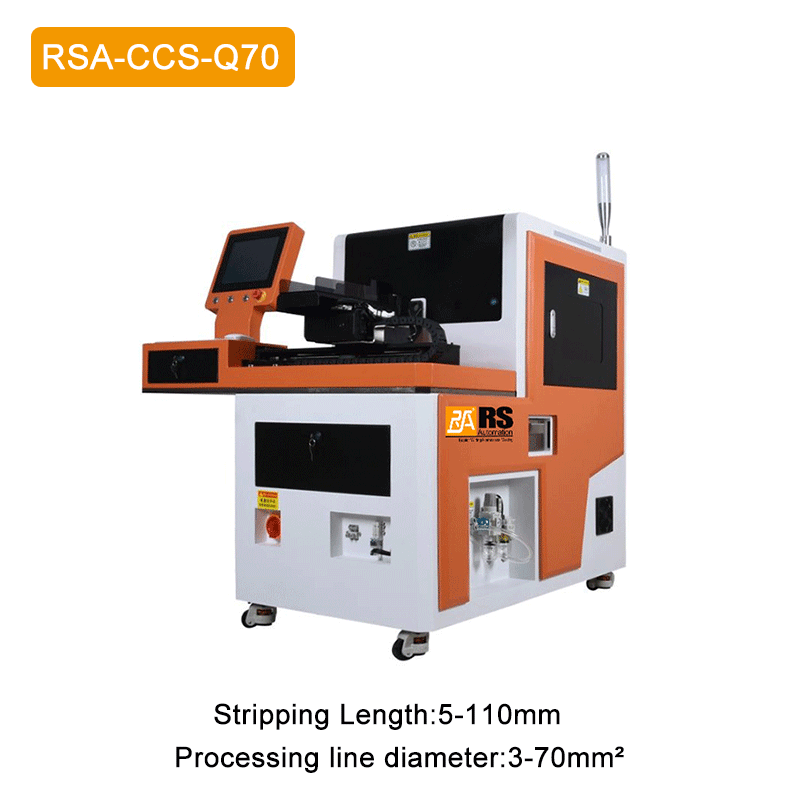

Multi-Layer Shield Cable Stripping Machine RSA-CCS-Q70
- Stripping Length Tolerance:±0.2
- I.D. Of Wire Stripping:Φ10-Φ50mm
Specification
| Model | RSM-CCS-Q70 |
| Function | Cut the shield braid and peel the metal inner and outer insulation |
| Processing Cable | 3-70mm² |
| Stripping length | 5-110mm |
| Cutting length of the shield braid | 5-100mm（customized beyond this specification） |
| Voltage | AC 220V 50/60Hz/16A |
| Power | 4 KW |
| Weight | About 200kg |
| Working Air Pressure | 0.5-0.7Mpa |
| Dimension | L1130mm*W1350mm*H1300mm |
