Feature
- No need to change crimp tool when change different terminal sizes.
- Hexagon crimping shape, versatile for various terminal types.
- Simplified applicator assembly and adjustment guaranteed by pillar-guided design.

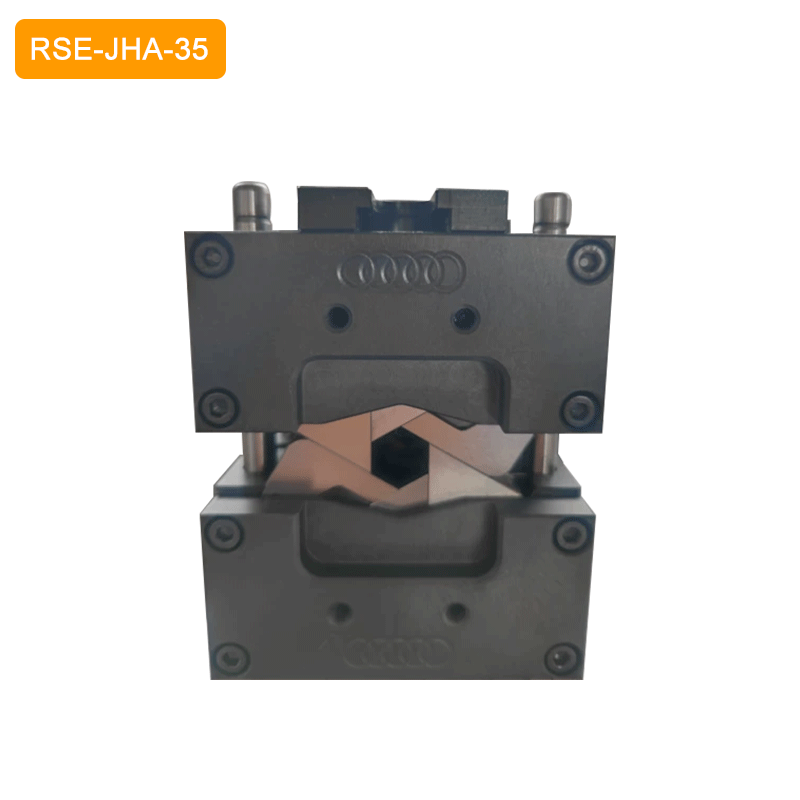

Pillar-Guided Hexagon Crimping Applicator RSE-JHA-35
- Wire Size:0.08mm²-6mm²
- Stroke:30mm
Specification
| Model | RSE-JHA-35 |
| Applicable Crimping Press | 20T hydraulic crimping press, 40T servo crimping press |
| Crimping Shape | Hexagon Crimping |
| Wire Size | 1-35mm² |
| Crimping Accuracy | ±0.02mm |
| Crimp Tool Thickness | 10mm (depends on terminal length) |
| Crimp Tool Service Life | About 300,000 cycles |
| Weight | 4KG |
| Dimension | L110mm×W150mm×H155mm |
