Feature
- No need to change crimp tool when change different terminal sizes.
- Square crimping shape, versatile for various terminal types.
- Simplified applicator assembly and adjustment guaranteed by pillar-guided design.

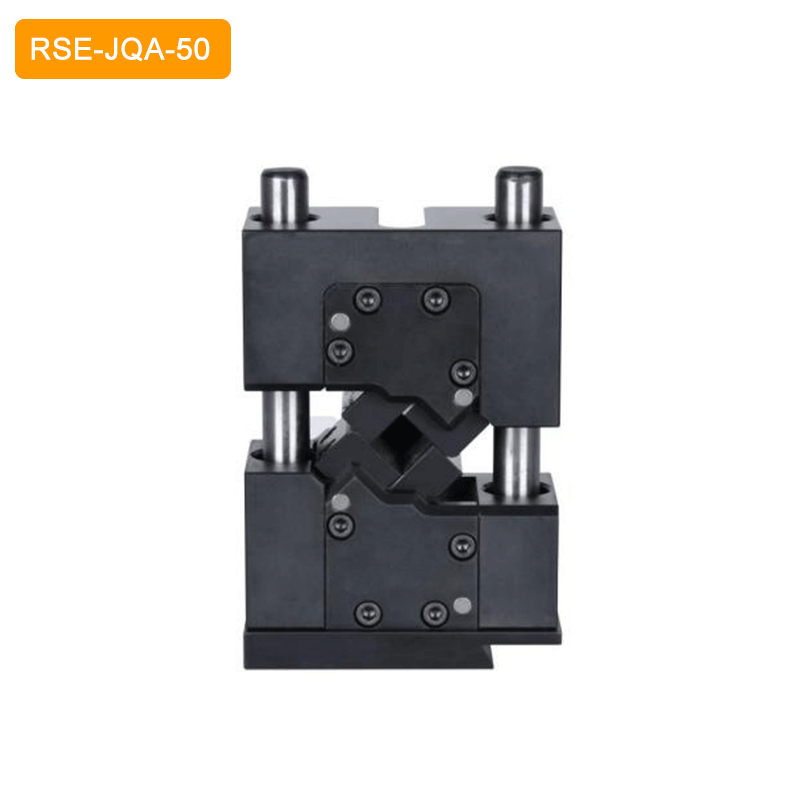

Pillar-Guided Square Crimping Applicator RSE-JQA-50
- Wire Size:0.08mm²-6mm²
- Stroke:30mm
Specification
| Model | RSE-JQA-50 |
| Applicable Crimping Press | 4T/10T servo crimping press, silent crimping press under 8T |
| Crimping Shape | Square Crimping |
| Stroke | 0-30mm (adjustable) |
| Wire Size | 1-50mm² |
| Crimping Accuracy | ±0.03mm |
| Crimp Tool Thickness | 4-20mm |
| Crimp Tool Service Life | About 100,000 cycles or more |
| Weight | 3.6KG |
| Dimension | L105mm×W67mm×H164mm |
