- Adopt PLC Control, All processing parameters can be set on HMI.
- Special for big size cable with long stripping length.
- Rotation insulation stripping way to guarantee the smooth cutting edge without hurt of conductor

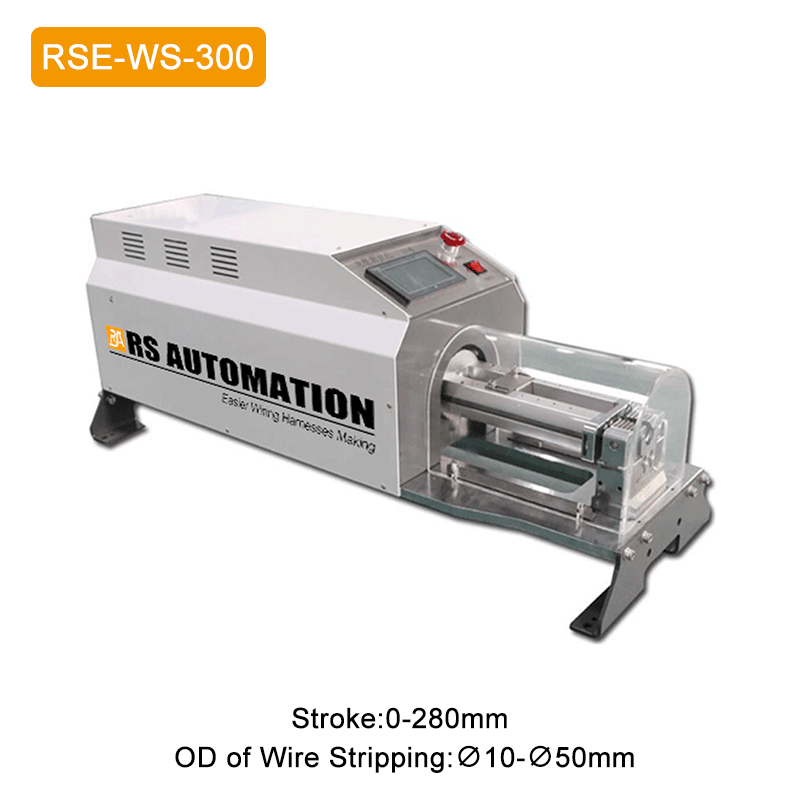

Pneumatic Shield Cable Stripping Machine RSE-WS-300
- I.D. Of Wire Stripping:Φ10-Φ50mm
- Stroke:0-280mm
Specification
| Model | RSE-WS-300 |
| Control System | PLC plus touch screen |
| Stripping Method | Rotary |
| Stroke | 0-280mm |
| Stripping Length Tolerance | ±0.2 |
| I.D. Of Wire Stripping | Φ10-Φ50mm |
| Speed | 10-30pcs/min |
| Air Pressure | 0.5-0.7MPa |
| Power | 300W |
| Voltage | 220V 50-60HZ |
| Weight | 115Kg |
| Dimension | L1440mm*W330mm*H450mm |
