Feature

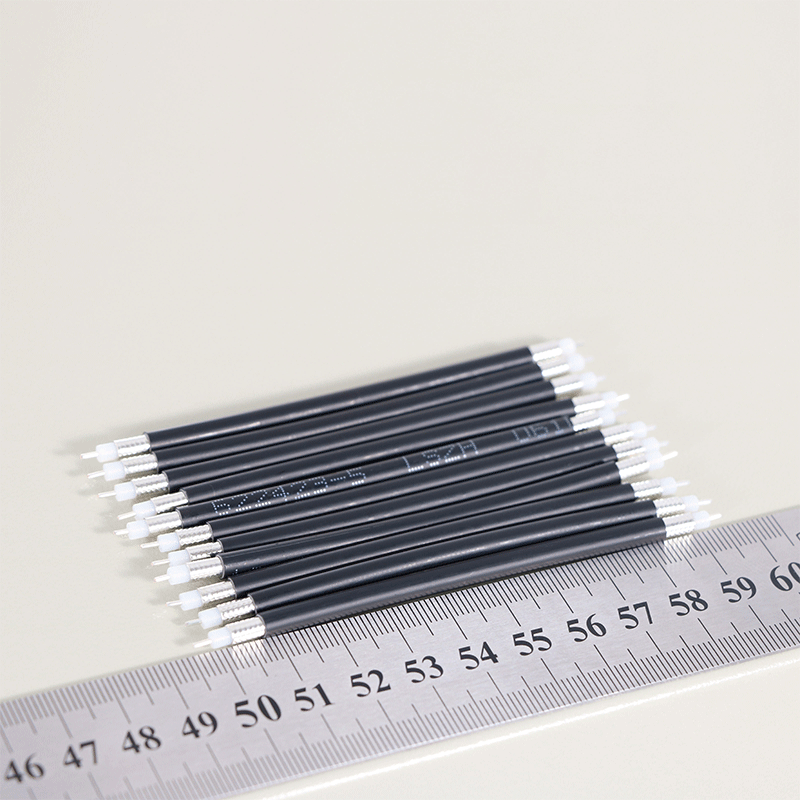

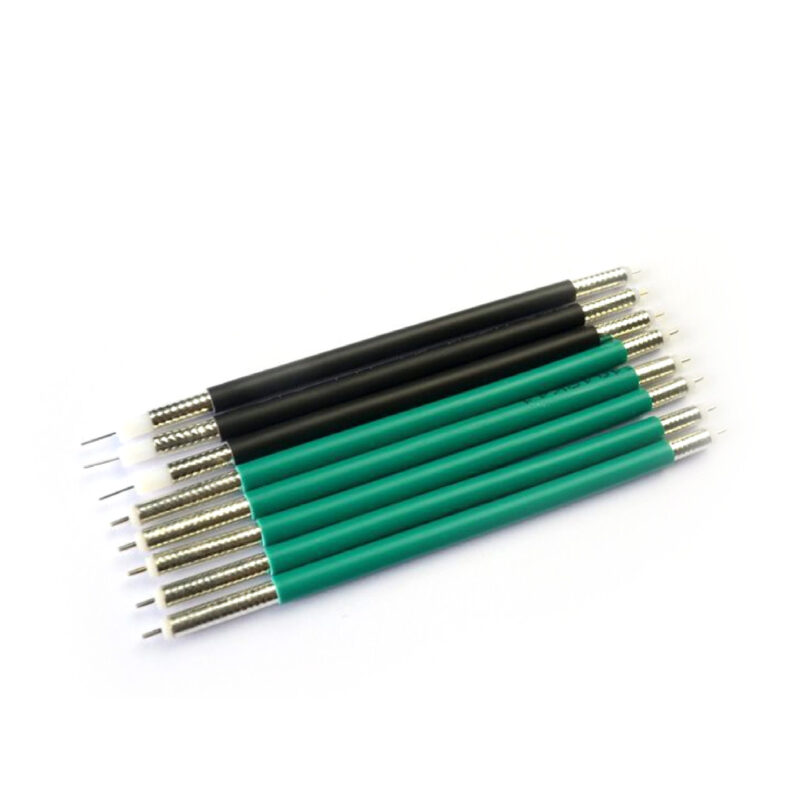

- Suitable for semi-flexible and flexible coaxial cable in base station antenna.
- Intelligent HMI which can easily store 100 memories/recipes and enable operators to call them at any time.

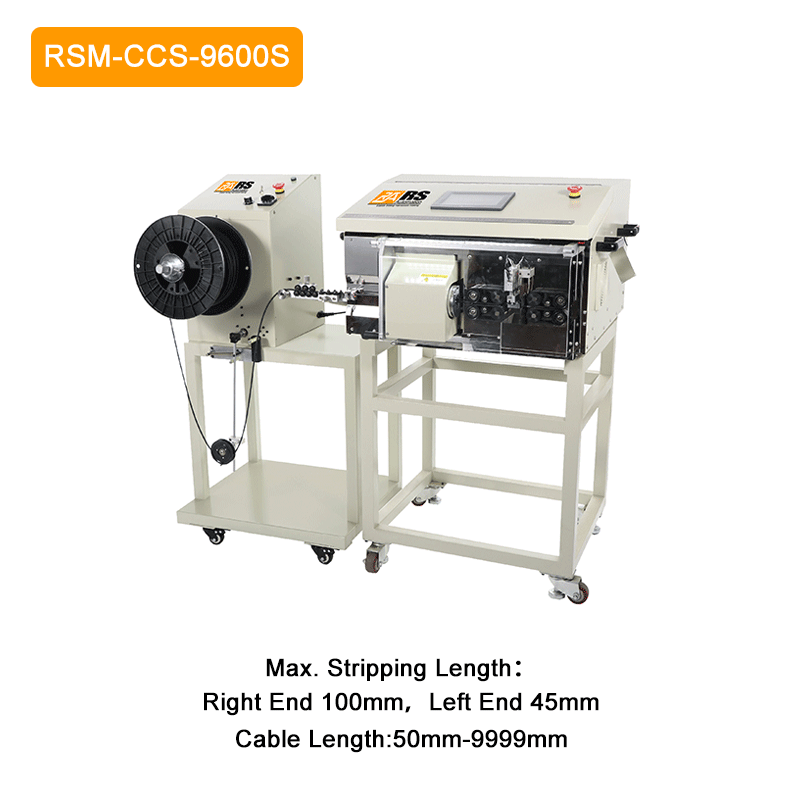

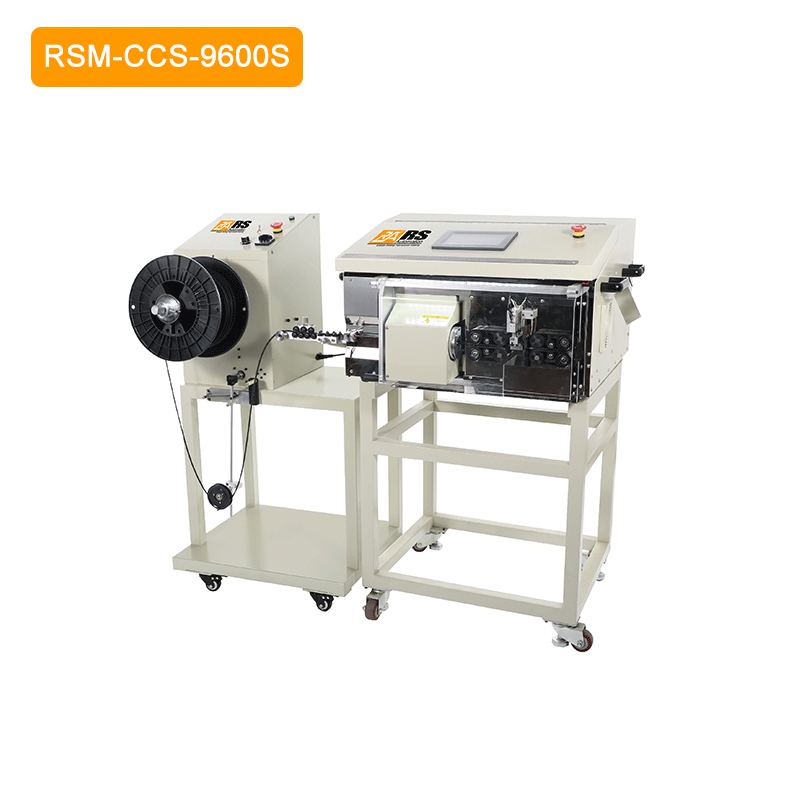

Semi-automatic Coaxial Cable Stripping Machine RSM-CCS-9600S
- Cable Change：1.0-5.5mm （Custom1.5-8.5mm）
- Cutting Accuracy：0.01mm
Specification
| Model | RSM-CCS-9600S |
| Voltage | AC220V/110V 50/60HZ |
| Cutting Length | 50mm-9999mm |
| Cable Change | 1.0-5.5mm （Custom1.5-8.5mm） |
| Stripping Length | Right End max100mm，Left End max45mm |
| Cutting Accuracy | 0.01mm |
| Max. Stripping Layers | 6 layer |
| Power | 800W |
| Productivity | 300-850pcs/h（Depending on the type and the length of the cable） |
| Weight | 120kg |
| Dimension | 790mm*730mm*400mm |
