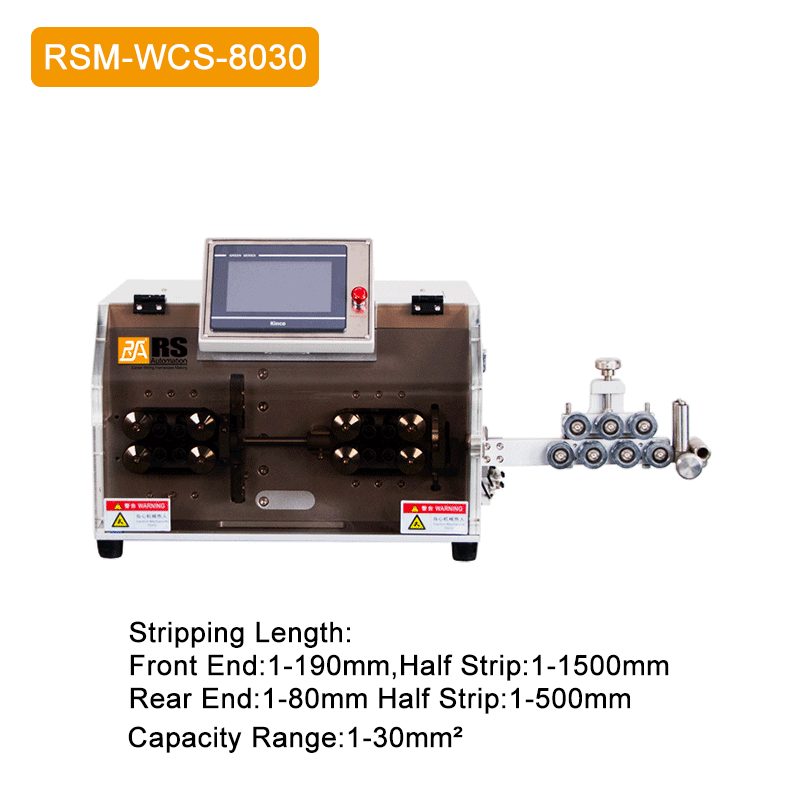

Sheath Cable Cutting & Stripping Machine RSM-WCS-8030

Capacity Range:1-30mm²
Cutting Length:1mm-99999.99mm
Guiding Tube I.D.:Φ16

The RSM-WCS-8030 cable cutting and stripping machine is designed for sheath cable preparation. The listed capacity range is 1–30 mm²; check the cable construction and outside diameter before selecting a setup.

Specification

RSM-WCS-8030


Model	RSM-WCS-8030
Display Way	7 inch HMI
Function	Cable cutting stripping
Cable Type	PVC cable，sheath Cable
Capacity Range	1-30mm²
Cutting Length	1mm-99999.99mm
Cutting Tolerance	Within 0.002 x L（L=Cutting Length)
Stripping Length	Front end ：1- 190mm , half Strip： 1-1500mm
	Rear end：1- 80mm , half Strip： 1-500mm
Guiding Tube I.D.	Φ16
Productivity	2000 pcs/hour (Depending on the length and size of the line)
Drive Mode	16 wheel drive (Silent hybrid step motor, servo knife holder)
Feeding Way	Belts
Remark	Machine can be customized base on the sample if the cable is unique.
