Function

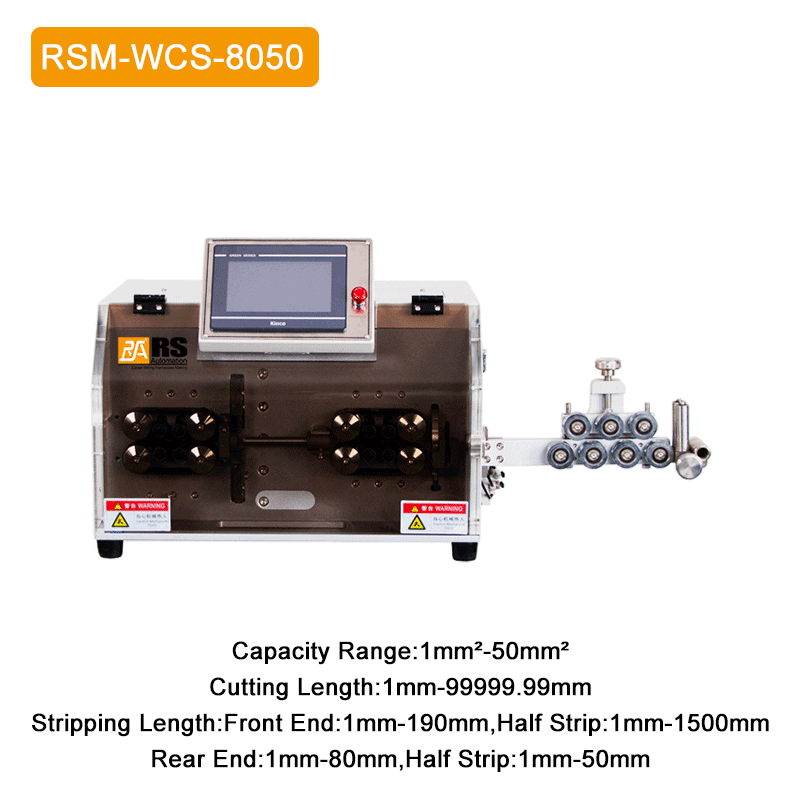

Sheath Cable Cutting & Stripping Machine RSM-WCS-8050
- Capacity Range:1mm²-50mm²
- Cutting Length:1mm-99999.99mm
- Guiding Tube I.D.:Φ20
Specification
| Model | RSM-WCS-8050 |
| Display Way | 7 inch HMI |
| Function | Cable cutting stripping |
| Cable Type | PVC cable，sheath cable |
| Capacity Range | 1mm²-50mm² |
| Cutting Length | 1mm-99999.99mm |
| Cutting Tolerance | Within 0.002 x L（L=Cutting Length) |
| Stripping Length | Front End：1mm - 190mm ，Half Strip：1mm -1500mm |
| Rear End：1mm - 80mm ， Half Strip： 1mm -500mm | |
| Guiding Tube I.D. | Φ20 |
| Productivity | 2000 pcs/hour (Depending on the length and size of the line) |
| Drive Mode | 16 wheel drive (Silent hybrid step motor, servo knife holder) |
| Feeding Way | Belts |
| Remark | Machine can be customized base on the sample if the cable is unique. |
