Specification
| Part Number | RS-DZ001 |

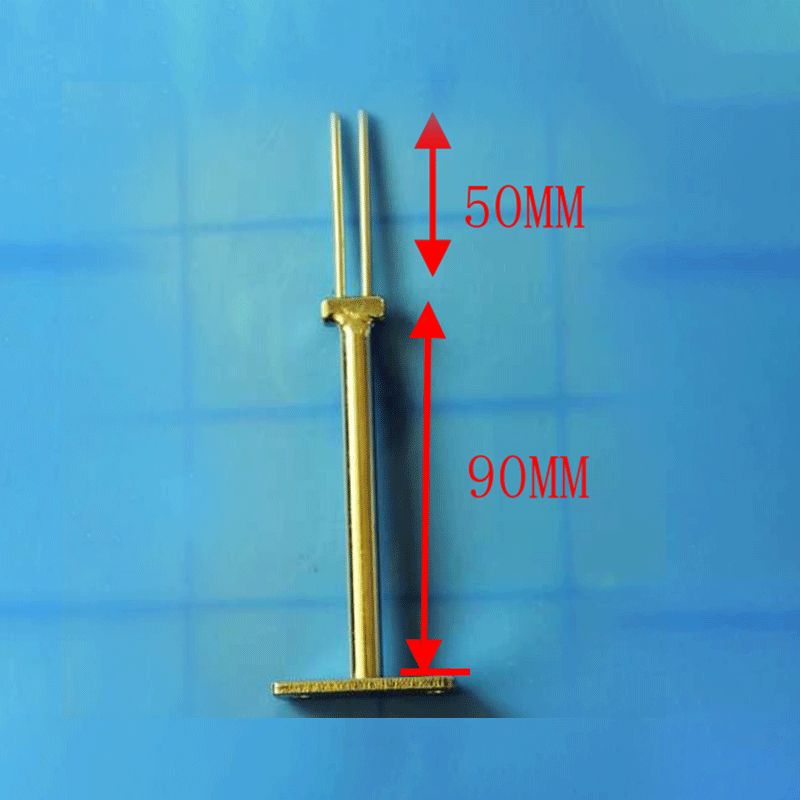

| Description | T-type base fork 2pin |
| Function | Use for end sheath mount, lock on the tooling plate with screw. |
| Specification | Material: iron electroplate and stainless steel electroplate (galvanize, nickelage, chromeplate) |
| Leg length: 85mm and 105mm | |
| pin pitch: 4mm | |
| Base dimension: 43mm*20mm | |
| (Special size can be customized) |
| Part Number | RS-DZ002 |

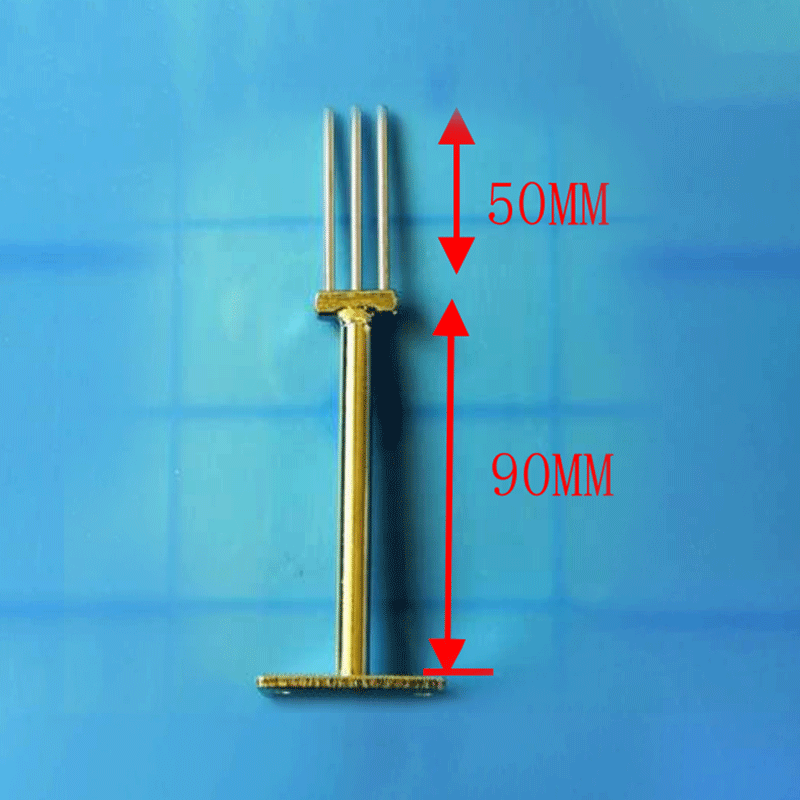

| Description | T-type base fork 3pin |
| Function | Use for end sheath mount, lock on the tooling plate with screw. |
| Specification | Material: iron electroplate and stainless steel electroplate (galvanize, nickelage, chromeplate) |
| Leg length: 85mm and 105mm | |
| pin pitch: 4mm | |
| Base dimension: 43mm*20mm | |
| (Special size can be customized) |
| Part Number | RS-DZ003 |

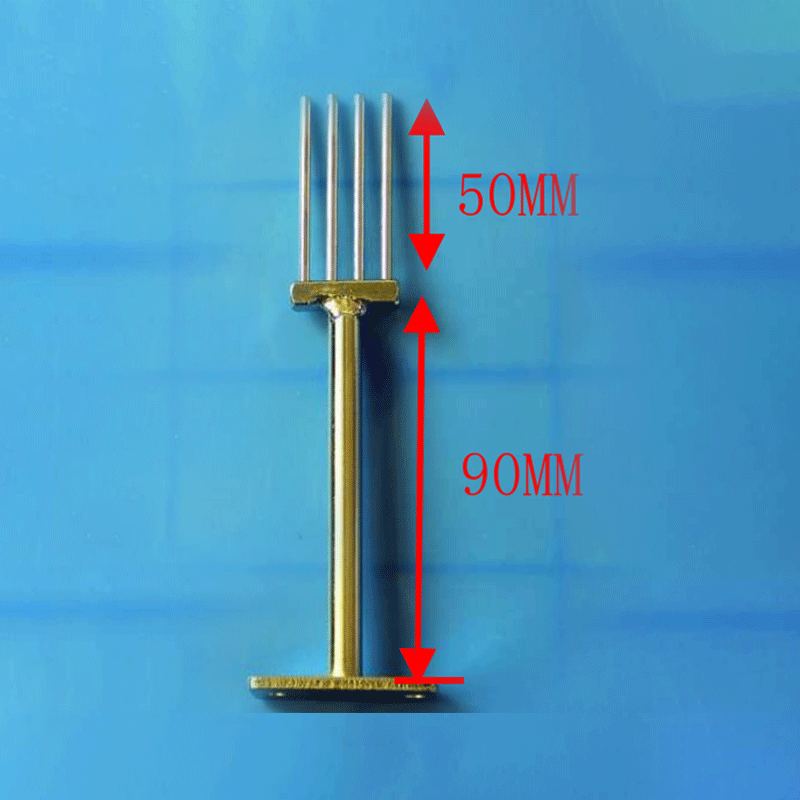

| Description | T-type base fork 4pin |
| Function | Use for end sheath mount, lock on the tooling plate with screw. |
| Specification | Material: iron electroplate and stainless steel electroplate (galvanize, nickelage, chromeplate) |
| Leg length: 85mm and 105mm | |
| pin pitch: 4mm | |
| Base dimension: 43mm*20mm | |
| (Special size can be customized) |
