Feature
- 20 years production experience guarantee the most economic and durable crimping applicator.
- The C.H./I.h. Is 0.05mm, the adjustable range is 0.1mm.
- Can be used on both semi-automatic crimping machine and fully automatic crimping machine.

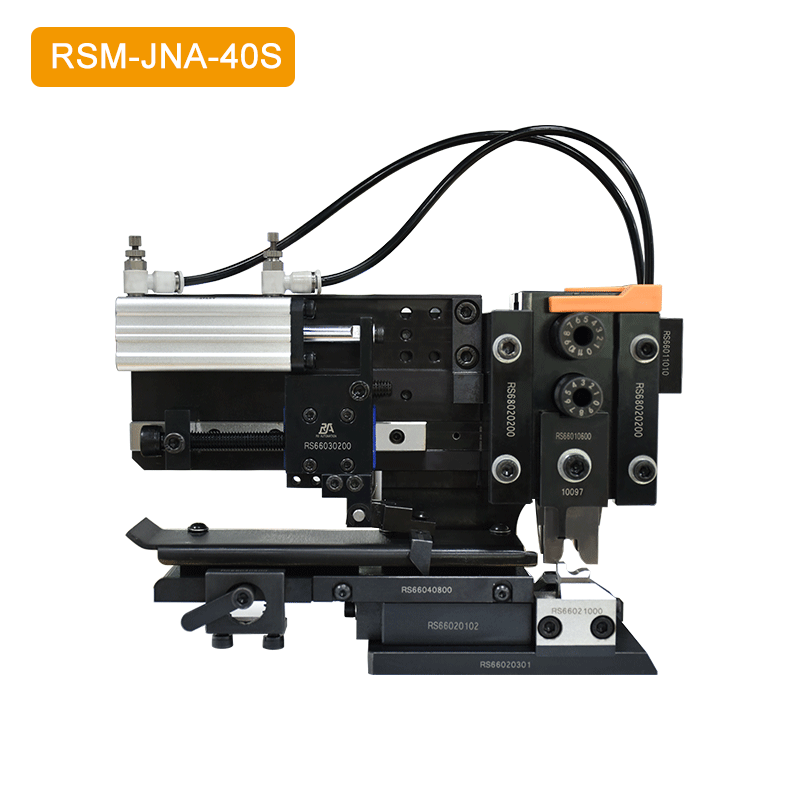

Terminal Applicator RSM-JNA-40S
- Wire Size:0.08-16mm²
- Stroke:30mm
Specification
| Model | RSA-JNA-40S |
| Feed Type | Side Feed |
| Stroke | 30mm |
| Shut height | 119.7mm |
| Wire Size | 0.08-16mm² |
| Terminal Thickness | 1.2mm(Max) |
| Feeding System | Mechanical |
| Terminal Pitch | 25mm(max) |
| Dimension | 240*150*95mm |
| N.W. | 7KG |
