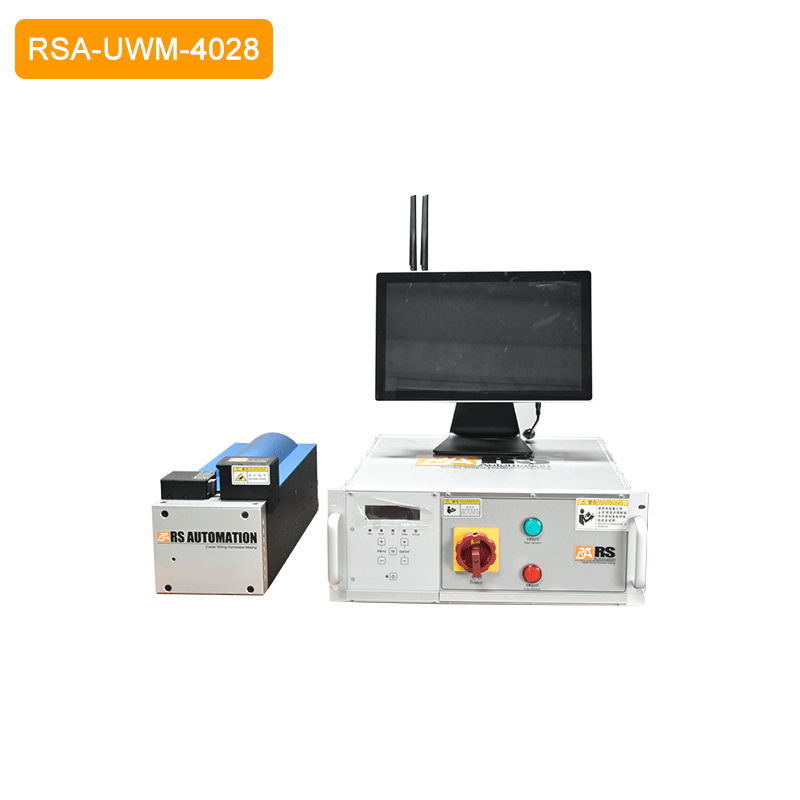

Ultrasonic Welding Machine RSA-UWM-4028

Cable Range：0.35mm²-16mm² (depends on specific size&material of object)

Work Mode：Various welding method

Widely applicable. Suitable for welding of bunches, copper wires, aluminum wires, and copper-aluminum wires.
Enhanced welding quality. Output power and frequency can be adjusted by automatic frequency tracking technology.
Void welding is prevented by automatic height control to keep the weld strength and avoid material waste.
Stable and reliable electrical conductivity. The welding time, width, pressure and amplitude can be infinitely adjusted according to various welding conditions.
Better ultrasonic conductivity and stability of the welding quality guaranteed by robust and durable ultrasonic welding horn made of imported die steel.
With HMI, real-time monitoring and recording of each welding can be achieved for informatization and automation of welding.
User-friendly. Intuitive screen display to facilitate parameter setting, no mechanical adjustment required.

Specification


Model	RSA-UWM-4028
Cable Range	0.35mm²-28mm² (depends on specific size&material of object)
Work Mode	Various welding method
Control Way	Pneumatic control
Air Source	0.1-0.6MPa
Frequency	20KHZ
Storage	256GB
Power	4000W
Voltage	220V (single phase)
Weight	40KG
Generator Dimension	L450mm W350mm H160mm
Host Machine Dimension	L660mm * W195mm*H210mm
