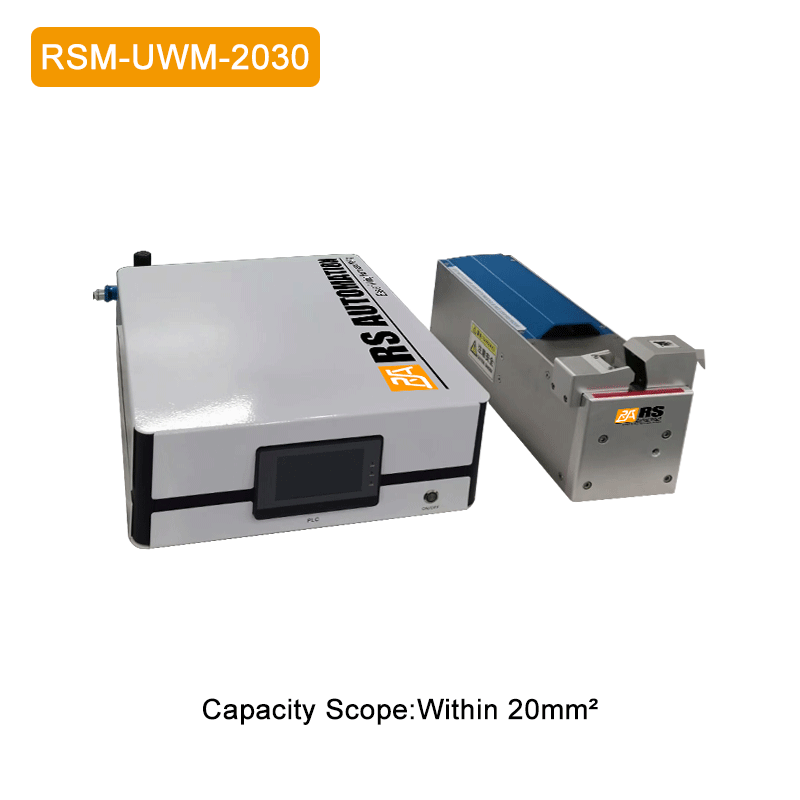

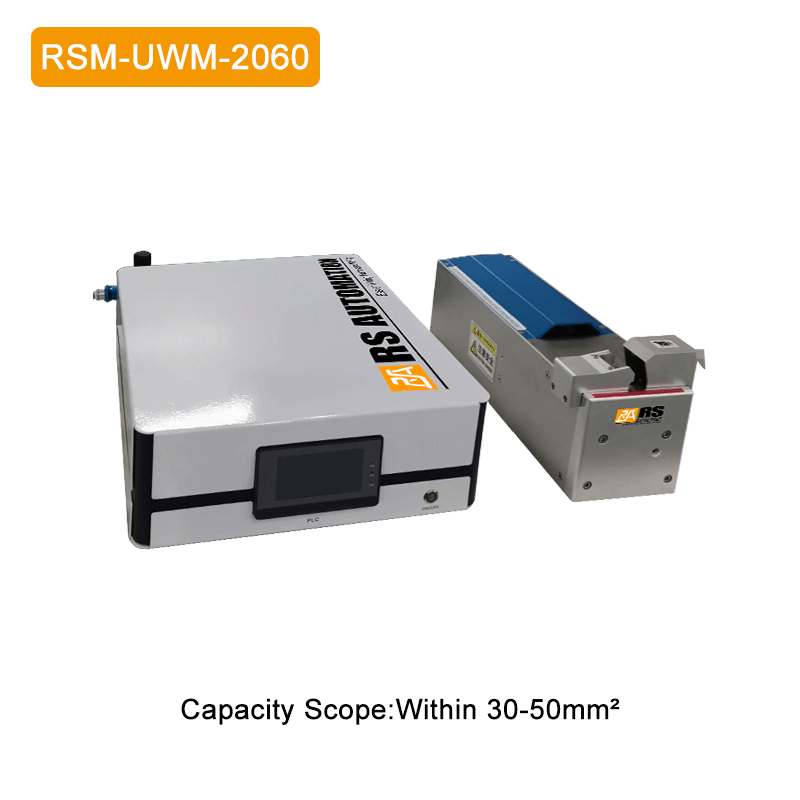

Ultrasonic Welding Machine RSM-UWM-2030/2042/2060/2080
Feature
- Adopt complete digit intelligent control, can set the make up frequency automatically,when the welding kits have abrasion.
- Dynamic matching between generator and energy convertor to guarantee the stability of the welding quality
- Flexible to set the welding width and height to satisfy the pulling force testing requirement
Specification
| | | | |
|---|
| Model | RSM-UWM-2030 | RSM-UWM-2042 | RSM-UWM-2060 | RSM-UWM-2080 |
| Frequency | 20Khz | 20Khz | 20Khz | 20Khz |
| Power | 3000W | 4200W | 6000W | 8000W |
| Voltage | AC 220V,Single phase | AC 220V,Single phase | AC 220V,Single phase | AC 220V,Single phase |
| Capacity Scope | Within 20mm² | Within 30mm² | 30-50mm² | Within 70mm² |
| Weight | 55 Kg | 60Kg | 60 Kg | 65 Kg |
| Dimension | 540X540X160mm | 540X540X160mm | 540X540X160mm | 540X540X160mm |
Product PDF
