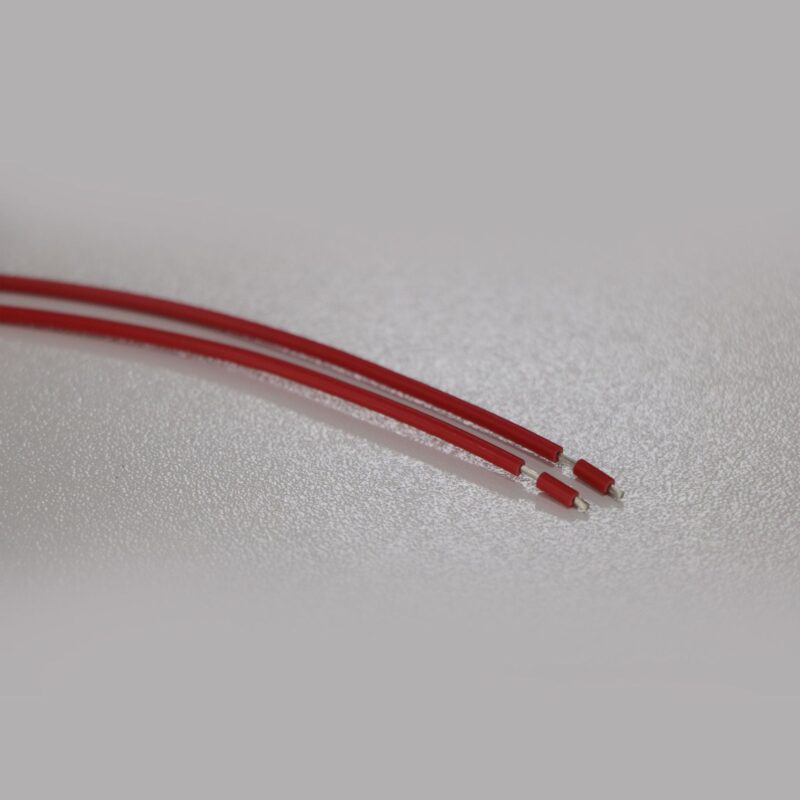

The RSM-WS-745 wire stripping machine prepares wire ends with half, full, double and multi-layer stripping modes. The listed cutting outside diameter is 0.5–7 mm and the stripping length is 0–45 mm.
Feature
- High stripping precision with 0.01mm stripping length and cutting depth accuracy.

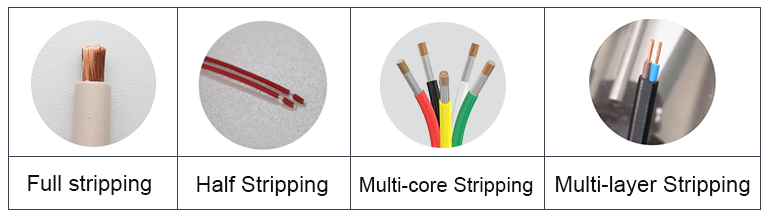

- Various processing modes (half stripping, full stripping, double stripping, multi-layer stripping) for processing different types of wire.
- The gripper and knife move horizontally to ensure that the center height is consistent when processing different wires.
- Using 90° V knife, no need to replace knives for processing of different wires, which ensure easy operation.
- All parameters can be set on HMI, and Chinese/English interface, to ensure easy setup for each function.
- Up to 99 groups of processing parameters can be stored, which greatly saves the adjustment time and materials waste.
Standard Parts
- Air tube, Power cord, Foot switch, Hex wrench, Stripping blade
